Electrical distribution boxes in multi-story buildings

Electrical distribution in multi-story buildings typically uses floor-specific distribution boxes connected to a main supply, ensuring safe, balanced, and accessible power distribution.

Overview of Distribution Systems

In multi-story buildings, electricity can be distributed using either separate energy meters for each floor or a single main meter on the ground floor. Each floor usually has its own distribution board (DB) or sub-distribution board, which receives power from the main distribution fuse board. From these boards, sub-circuits are drawn to supply lighting, fans, sockets, and other electrical loads, ensuring balanced load distribution and safety .

Centralized vs Decentralized Distribution

• Centralized Distribution: A single main distribution board on the lowest floor supplies all floors. Sub-circuits are routed vertically to each floor's distribution board. This method is simpler but may require multiple circuits per floor to handle the total load .

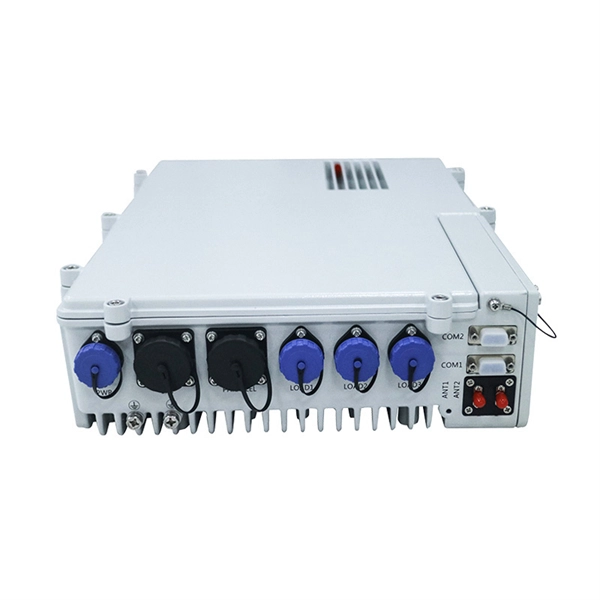

• Decentralized Distribution: Each floor has its own distribution box connected directly to the main supply or via risers. This approach allows pluggable, flexible, and modular installation, which is particularly useful in smart buildings or areas with high energy efficiency requirements .

Three-Phase Wiring

For larger buildings, three-phase systems are commonly used. The main three-phase energy meter connects to a MCCB (Moulded Case Circuit Breaker) as the main switch. Each floor receives a phase line, and the neutral is typically shared but managed through individual breakers. Sub-circuits on each floor are protected by MCBs (Miniature Circuit Breakers) and RCDs (Residual Current Devices) to ensure safety .

Busbar and Riser Systems

Some modern systems use horizontal busbars on each floor connected by vertical riser cables. Busbars allow for neat, high-current distribution and reduce the number of risers needed. Insulated covers protect the busbars, and connection points allow flexible attachment of sub-circuits .

Key Considerations

• Fuse and breaker ratings must match the load of each floor or sub-circuit to prevent overloads .
• Accessibility: Main distribution boards are usually installed on lower floors for quick access in emergencies .
• Ventilation: Distribution boxes with high-power devices may require ventilation to dissipate heat .
• Safety and compliance: Systems should comply with standards such as IEC 61439 for distribution boxes and IEC 61535 for connectors .

Summary

Electrical distribution in multi-story buildings relies on a combination of main and sub-distribution boards, proper circuit protection, and either centralized or decentralized layouts. Three-phase systems, busbars, and modular distribution boxes enhance efficiency, safety, and flexibility, making them suitable for both residential and commercial buildings .
