Install photovoltaic cable reel

Proper installation of a photovoltaic cable reel ensures safe, efficient, and long-lasting solar system performance.

Step 1: Select the Right PV Cable

Choose photovoltaic-specific cables certified to standards like EN50618, designed for outdoor use with UV resistance, wide temperature tolerance (-40°C to 120°C), and flame retardancy. Prefer tinned copper conductors for optimal conductivity and corrosion resistance. Ensure the cable voltage rating meets or exceeds your system's maximum voltage, typically 600V–1500V DC for PV systems ( ).

Step 2: Prepare Tools and Materials

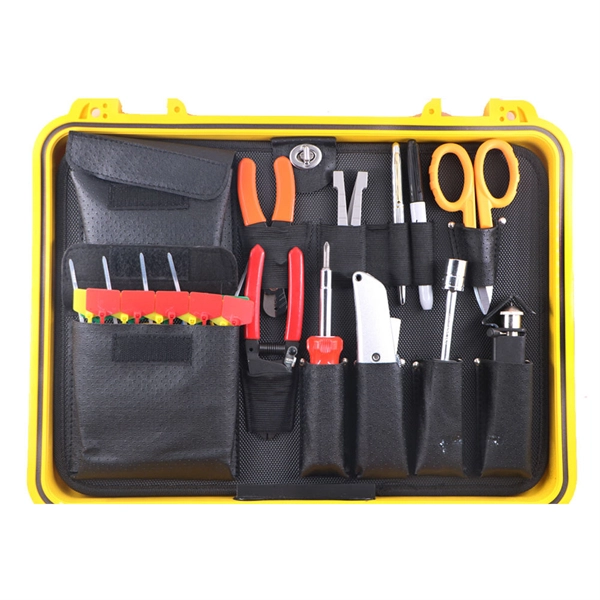

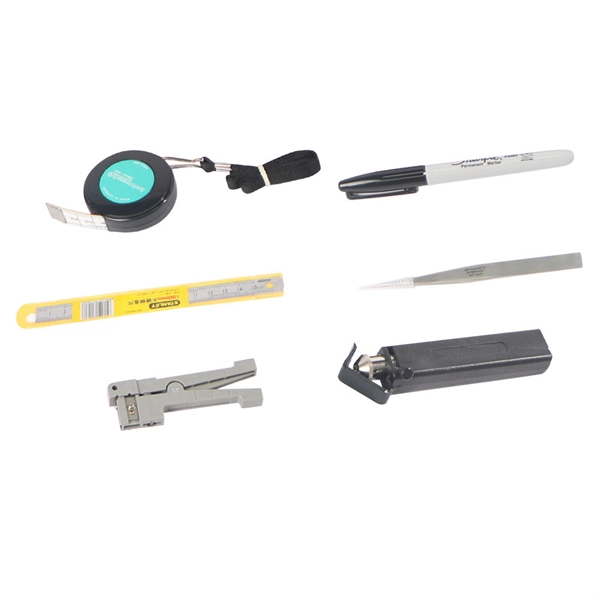

Essential tools include cable cutters, wire strippers, crimping tools, multimeter, megohmmeter, heat gun, cable pullers, and fixing clamps. Materials include MC4 connectors, heat-shrink tubing, waterproof sealing tape, cable ties, cable trays or conduits, and grounding strips ( ).

Step 3: Plan Cable Routing

Determine the path for the cables from the PV modules to the inverter or junction box. Avoid sharp bends, excessive tension, and areas prone to mechanical damage. Use cable trays, conduits, or clips to secure cables along the route. Maintain proper spacing to prevent overheating and minimize voltage drop ( ).

Step 4: Use Cable Clips or Reels

For a cable reel installation:

1. Position the reel near the PV modules or along the planned cable path.
2. Pull the cable from the reel carefully, avoiding kinks or twists.
3. Secure the cable using PV cable clips along the panel edges or back, ensuring the cable sits properly in the clip channels ( ).
4. Fix clips with screws or adhesive according to the manufacturer's instructions, keeping cables organized and strain-free.

Step 5: Connect and Test

• Strip the cable ends and attach MC4 connectors or other approved connectors.
• Connect the cables to the PV modules, inverter, or junction boxes following polarity and color coding (Red = DC positive, Black = DC negative, Green/Yellow = earth).
• Test the system with a multimeter or insulation tester to ensure proper continuity, insulation resistance, and absence of short circuits ( ).

Step 6: Safety Considerations

• Always wear insulated gloves and use insulated tools when handling live PV cables.
• Keep connectors dry and clean to prevent electric arcs or shocks.
• Avoid placing excessive loads on cables or modules to prevent mechanical damage ( ). By following these steps, a photovoltaic cable reel can be installed safely and efficiently, ensuring long-term reliability and optimal performance of your solar power system.
