Construction of power fiber optic cable crossings

Power fiber optic cable crossings require careful planning, adherence to safety standards, and proper installation techniques to ensure reliable and interference-free operation.

Planning and Survey

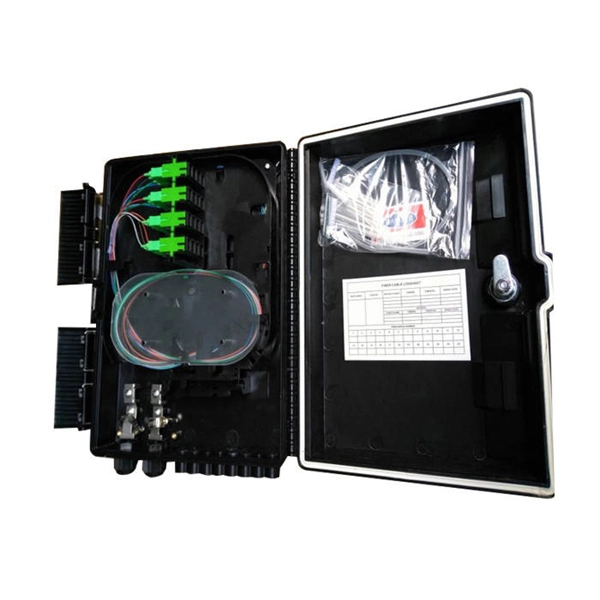

Before construction, a site survey is essential to map the route, identify existing power lines, and assess potential obstacles such as roads, waterways, or buildings. The survey determines whether the fiber will be installed aerially on poles or underground in ducts, and identifies central distribution points for network architecture, often using a Passive Optical Network (PON) design for efficiency and minimal maintenance .

Regulatory and Safety Considerations

Crossing power lines involves strict compliance with utility regulations and safety standards. Minimum vertical and horizontal clearances must be maintained to prevent electrical hazards. Coordination with power utility owners is required to verify pole loading, separation distances, and joint-use agreements. Permits and easements must be obtained for public rights-of-way or private property crossings .

Installation Methods

Aerial Crossings

• Joint-use poles: Fiber cables can be attached to existing power poles using brackets or messenger wires. Vertical midspan clearances and climbing space requirements must be observed to ensure safety and accessibility .
• Strength members: Fiber cables often include Kevlar or fiberglass rods to withstand tension during installation and prevent stress on the optical fibers .
• Attachment hardware: Cable clamps, hangers, and messenger wires are used to secure the fiber while maintaining proper sag and clearance from power lines.

Underground Crossings

• Ducts and microducts: High-density polyethylene (HDPE) ducts protect fiber from mechanical damage and moisture. Microducts allow for future cable expansion without additional excavation .
• Boring or trenching: Horizontal directional drilling (HDD) is commonly used to cross under roads or power lines without disturbing existing infrastructure.
• Waterproofing: Loose tube cables often include water-swellable yarns or gel to prevent moisture ingress, which is critical when crossing areas prone to flooding or water accumulation .

Grounding and Bonding

Fiber optic cables near power lines must be properly grounded and bonded to prevent electrical hazards and reduce the risk of induced voltages from nearby high-voltage lines. Metallic components, such as armored cables or messenger wires, require connection to grounding systems in accordance with local electrical codes .

Testing and Documentation

After installation, fibers should be tested for continuity, attenuation, and signal integrity. Detailed documentation of the crossing, including pole numbers, duct routes, and clearance measurements, ensures compliance and facilitates future maintenance .

Key Considerations

• Maintain minimum separation distances from power lines to prevent arcing or interference.
• Use mechanically reinforced cables to withstand tension and environmental stress.
• Ensure regulatory compliance with local, national, and utility-specific standards.
• Plan for future expansion using microducts or spare conduits.
• Implement safety protocols for workers during aerial or underground installation. By following these guidelines, power fiber optic cable crossings can be constructed safely, reliably, and in compliance with industry standards, ensuring long-term network performance and minimal risk to personnel or infrastructure .
