Optical 8-splitter attenuation
The attenuation of an optical splitter depends on its split ratio, typically ranging from about 3.5 dB for a 1×2 splitter to over 20 dB for a 1×64 splitter.

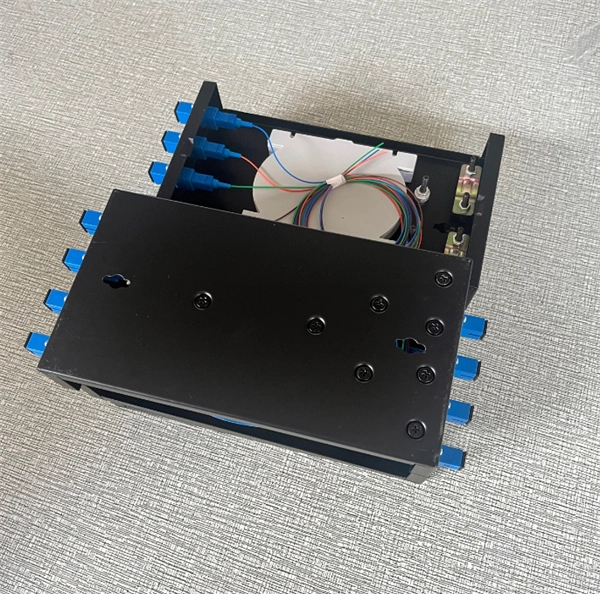

Understanding Splitter Attenuation
An optical splitter divides a single input signal into multiple outputs, and each output receives a fraction of the original optical power. This division inherently causes insertion loss, measured in decibels (dB), which represents the reduction in signal strength after passing through the splitter . The higher the number of outputs, the greater the attenuation.
Typical Insertion Loss by Split Ratio
- 1×2 splitter: ~3.5 dB
- 1×4 splitter: ~7 dB
- 1×8 splitter: ~10.5 dB
- 1×16 splitter: ~13.5 dB
- 1×32 splitter: ~17 dB
- 1×64 splitter: ~20–21 dB These values are approximate and can vary slightly depending on the splitter technology: FBT (Fused Biconical Taper) or PLC (Planar Lightwave Circuit). PLC splitters generally provide more uniform output and slightly lower excess loss, especially for higher split ratios .
Cascading Splitters
In some network designs, splitters are cascaded to achieve a large number of outputs. For example, a 1×64 split can be achieved by cascading a 1×8 splitter with a 1×8 splitter. The total insertion loss is roughly the sum of the individual splitter losses, so careful planning is required to stay within the optical budget .
Factors Affecting Attenuation
- Excess loss: Manufacturing imperfections or connector losses can add 0.1–2 dB to the theoretical insertion loss .
- Fiber type and distance: Signal attenuation in the fiber itself (typically 0.2–0.35 dB/km for singlemode fiber) adds to the total loss .
- Splitter uniformity: PLC splitters provide more consistent power distribution across outputs compared to FBT splitters, which may have slight variations .
Practical Considerations
When designing a PON or FTTH network, it is crucial to account for splitter attenuation in the total optical budget to ensure that the ONTs (Optical Network Terminals) receive sufficient power for reliable operation. Using fewer splitting levels and selecting high-quality PLC splitters can help minimize total loss .
