Connection of metal components in junction box

Metal components in a junction box must be properly grounded and securely connected to ensure electrical safety and prevent short circuits or shocks.

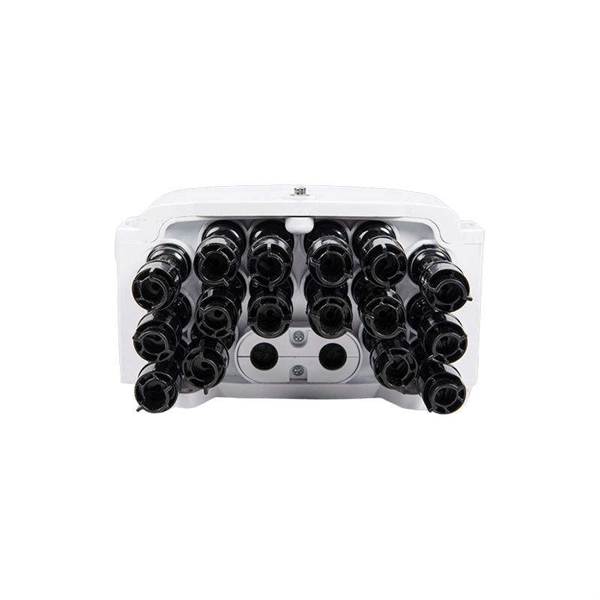

Metal Junction Box Overview

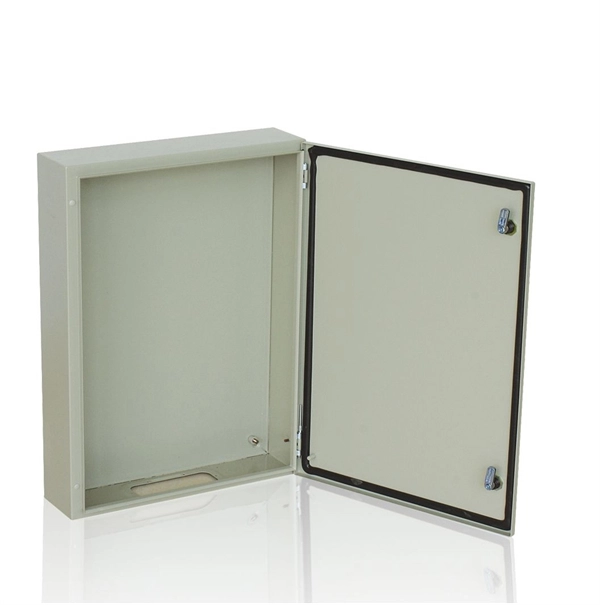

A metal junction box is a durable enclosure used to house electrical connections, protecting wires from physical damage, moisture, and accidental contact while providing a safe environment for splices and terminations . These boxes are commonly made from steel or aluminum and are suitable for residential, commercial, and industrial applications, especially in high-stress or outdoor environments . They typically include a metal enclosure, cover plate, knockouts for wiring, and grounding screws .

Grounding Metal Components

Proper grounding is essential when working with metal junction boxes:

• Grounding Screw: Most metal boxes have a dedicated green grounding screw. All bare or green-insulated grounding wires from circuits entering the box should be connected to this screw .
• Bonding the Box: If the box itself is part of the electrical path, the grounding wire should be looped around the screw and tightened securely to ensure the box is electrically bonded to the system ground .
• Wire Connectors: Use approved wire nuts or mechanical connectors to join multiple grounding wires together before attaching them to the grounding screw. This ensures continuity and reduces the risk of loose connections .

Connecting Conductors

• Splicing Wires: Inside the box, wires from different circuits are joined using wire nuts, terminal blocks, or other approved connectors. Ensure that all connections are tight and that no bare copper is exposed beyond the connector .
• Securing Metal Conduits: If metal conduits enter the box, they should be fastened using locknuts or conduit connectors to maintain mechanical stability and electrical continuity .
• Avoiding Crossed Wires: Organize wires neatly to prevent accidental contact between live conductors and the metal box, which could cause short circuits .

Safety and Code Compliance

• Box Fill: Follow the National Electrical Code (NEC) guidelines for box fill, which limits the number of conductors based on box volume and wire gauge .
• Cover Plate: Always install a metal cover plate to prevent accidental contact with live wires and to maintain grounding continuity .
• Inspection: After wiring, check that all metal components are securely fastened, grounding connections are continuous, and no wires are pinched or damaged .

Summary

Connecting metal components in a junction box involves proper grounding, secure splicing, and careful organization of wires and conduits. Using the grounding screw, bonding the box, and following NEC box fill requirements ensures safety, prevents electrical hazards, and maintains reliable operation of the electrical system .
