Standard Configuration of Electrical Distribution Boxes for Residents

A typical residential distribution box includes a main switch, separate circuits for room sockets, lighting, and high-power appliances, with proper installation height and safety features.

Main Components

1. Main Switch: The primary control for the entire household electrical system, usually an air circuit breaker. It protects against overload and short circuits, automatically cutting off power when faults occur. Common rated currents are 63A or 100A, selected based on total household power consumption (e.g., a 10–12 kW load at 220V requires roughly 45–55A, so a 63A breaker is suitable) .

2. Room Socket Circuits: Each room typically has its own circuit to manage standard outlets. This isolation ensures that electrical issues in one room do not affect the entire home .

3. High-Power Appliance Circuits: Appliances such as air conditioners, electric stoves, and water heaters require dedicated circuits to prevent overloading .

4. Lighting Circuits: Separate circuits for lighting maintain stable operation even if other circuits experience faults .

5. Circuit Breakers: Residential boxes use different types of breakers:

• 1P (Single Pole): Controls only the live wire.
• 1P+N (Single Pole + Neutral): Protects both live and neutral wires.
• 2P (Double Pole): Controls and protects both live and neutral wires, offering the highest safety .

Box Size and Positions

The size of the distribution box is chosen based on the number of circuits or "loops" in the home. Common specifications include 16, 20, or 24 positions, where each position can hold a circuit breaker or other electrical component .

Installation Considerations

• Location: Installed on walls in dry, ventilated areas such as corridors or stairwells for easy access and maintenance.
• Height: Typically 1.5–1.8 meters from the bottom edge to the floor, convenient for adult operation and preventing casual access by children .

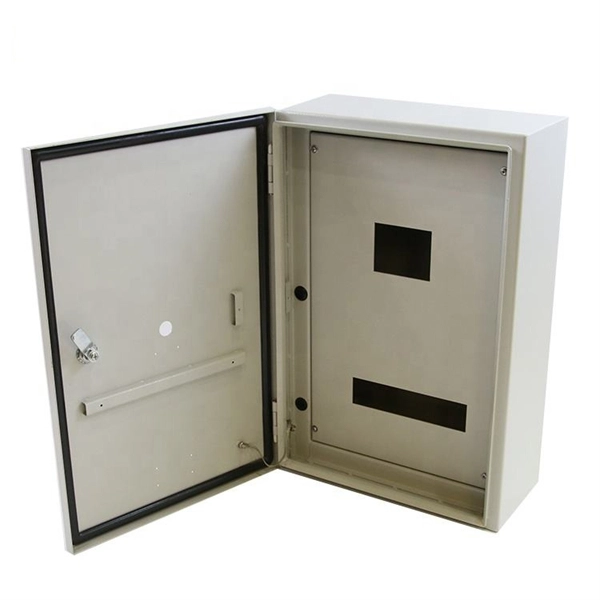

• Material: Boxes can be metal (good heat dissipation, requires grounding) or plastic (good insulation, slightly lower heat dissipation) .

Summary

A standard residential distribution box is designed for safety, convenience, and efficient power management, with a main switch, dedicated circuits for sockets, lighting, and high-power appliances, appropriate breaker types, and proper installation height and materials. The configuration can be adjusted based on household power needs and the number of electrical appliances .
